NedZink Pro-Tec
Natural titanium zinc with protective coating on the back
NedZink NATUREL Pro-Tec is natural titanium zinc with a protective coating on the back side for application on either cold or hot roof constructions. This protective coating on the backside protects the zinc against the effects of water vapour and other substances. The good processing properties of zinc are retained.

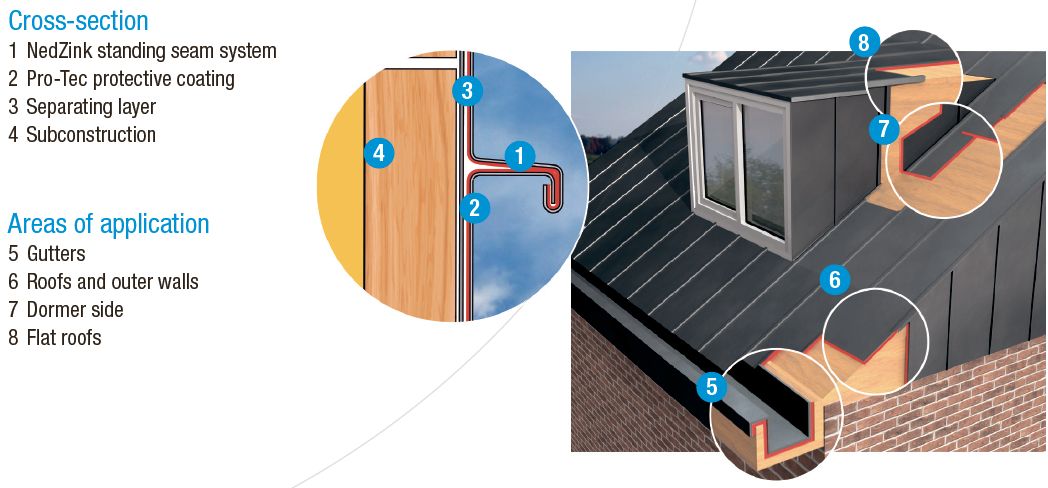

NedZink NATUREL Pro-Tec can be used in all standard systems, but is mainly recommended for unventilated, damp-proof hot roof constructions and outer wall cladding.
Natural titanium zinc with protective coating on the back
NedZink NATUREL Pro-Tec
Product description
NedZink NATUREL Pro-Tec is titanium zinc produced by NedZink according to EN 988 with a protective coating on the back side for application on either cold or hot roof constructions.
Small quantities of the alloy elements copper, titanium and aluminium are added to electrolytically refined zinc (with a purity of min. 99,995% Zn, Z1 according to EN 1179) based on EN 988. The protective coating on the backside protects the zinc against the effects of water vapour and other substances. The good processing properties of zinc are retained.
The chemical composition, mechanical and physical properties and measurement tolerances of the base material are stipulated on the KOMO product certificate and the product certificate from Lloyd’s Register, LRIQS (Approval QIS 122). The material properties are verified by an independent and neutral research institute on a random basis. The product certification and the ISO 9001:2008 certificate for the quality management system at NedZink assure a constant and uniform high quality, meeting our own standards and far exceeding EN 988. The Pro-Tec protective coating on the back suffices with regard to various quality requirements set in ‘EN 13523’ and ‘EN 4628′.
Transport and storage
NedZink products are packed and sent dry. The advice is to store titanium zinc dry and ventilated. This reduces the probability of condensation formation.
Processing
NedZink NATUREL Pro-Tec is assembled with the visible NATUREL side on the outside. Mechanical deformation of zinc below 7°C material temperature is not allowed.
Properties of the material
A continuous stamp is applied to the back of all products in accordance with the provisions of EN 988 with the markings:
– NedZink NTZ
– The name titanium zinc in 4 languages; Dutch, German, French and English
– Product standard EN 988
– The nominal thickness
– Batch number
– Year of production
– Logos of KOMO and Lloyd’s Register
The products supplied when incorporated within any system, compliant with the suppliers guidelines for processing and installation, will remain water impervious and not perforate due to manufacturing defects.
For additional information about the product range and the processing of NedZink products, see our website www.nedzink.com.
Pre-weathered Titanium zinc with protective coating on the back

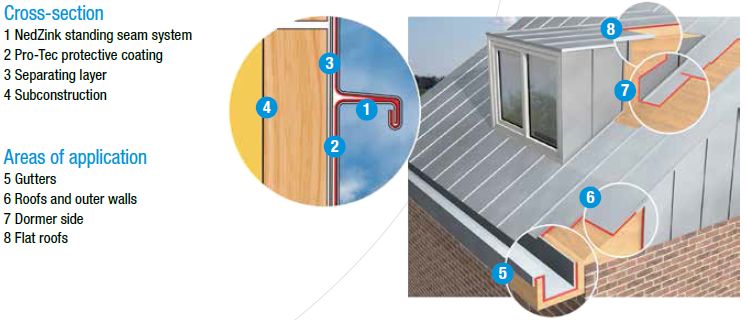

NedZink NOVA Pro-Tec is process-produced patinated Titanium zinc (NEN-EN 988) with a protective coating on the back side for application on either cold or hot roof constructions. This protective coating consisting of a 2-layer polymer coating system protects the zinc against the effects of water vapour and other substances. The good processing properties of zinc are retained. NedZink NOVA Pro-Tec can be used in all standard systems, but is mainly recommended for unventilated, dampproof hot roof constructions and outer wall cladding.
Pre-weathered titanium zinc with protective coating on the back
NedZink NOVA Pro-Tec
Product description
NedZink NOVA Pro-Tec is pre-weathered titanium zinc (EN 988) with a protective coating on the back side for application on either cold or hot roof constructions. This protective coating protects the zinc against the effects of water vapour and other substances. The good processing properties of zinc are retained. NedZink NOVA Pro-Tec can be used in all standard systems, but is mainly recommended for unventilated, dampproof hot roof and façade constructions.
As standard NedZink NOVA Pro-Tec is provided with an AFP Coating (Anti-Fingerprint) on the front side to avoid fingerprints during application and assembly to the extent possible. NedZink NOVA Pro-Tec is supplied with a foil on the surface to protect the surface during transport and assembly.
The chemical composition, mechanical and physical properties and measurement tolerances of the base material are stipulated on the KOMO product certificate and the product certificate from Lloyd’s Register, LRIQS (Approval QIS 122). The material properties are verified by an independent and neutral research institute on a random basis. The product certification and the ISO 9001:2008 certificate for the quality management system at NedZink assure a constant and uniform high quality, meeting our own standards and far exceeding EN 988.
The Pro-Tec protective coating on the back suffices with regard to various quality requirements set in ‘EN 13523’ and ‘EN 4628’.
Transport and storage
NedZink products are packed and sent dry. The advice is to store titanium zinc dry and ventilated. This reduces the probability of condensation formation.
Processing
NedZink NOVA Pro-Tec is assembled with the NOVA side on the outside. NedZink NOVA Pro-Tec has to be installed in the direction indicated by an arrow on the back, this must always be respected. NedZink NOVA Pro-Tec is supplied with a foil on the surface to protect the surface during transport and assembly. This foil should be removed immediately and in one smooth motion after assembly at the construction site. Mechanical deformation of zinc below 7°C material temperature (and removal of the protective foil) is not allowed.
Properties of the material
A continuous stamp is applied to the back of all products in accordance with the provisions of EN 988 with the markings:
– NedZink NTZ
– The name titanium zinc in 4 languages; Dutch, German, French and English
– Product standard EN 988
– The nominal thickness
– Batch number
– Year of production
– Logos of KOMO and Lloyd’s Register
The products supplied when incorporated within any system, compliant with the suppliers guidelines for processing and installation, will remain water impervious and not perforate due to manufacturing defects.
For additional information about the product range and the processing of NedZink products, see further on this website www.nedzink.com.
Pre-weathered Titanium zinc with protective coating on the back

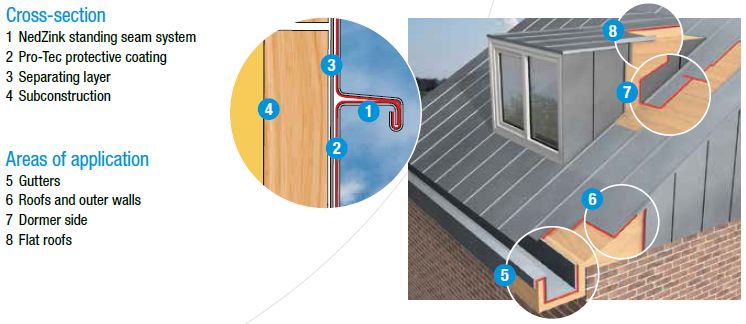

NedZink NOIR Pro-Tec is process-produced patinated Titanium zinc (NEN-EN 988) in an anthracite black colour with a protective coating on the back side for application on either cold or hot roof constructions. This protective coating consisting of a 2-layer polymer coating system protects the zinc against the effects of water vapour and other substances. The good processing properties of zinc are retained.
NedZink NOIR Pro-Tec can be used in all standard systems, but is mainly recommended for unventilated, dampproof hot roof constructions and outer wall cladding.
Pre-weathered titanium zinc with protective coating on the back
NedZink NOIR Pro-Tec
Product description
NedZink NOIR Pro-Tec is pre-weathered titanium zinc (EN 988) with a protective coating on the back side for application on either cold-or hot roof constructions. This protective coating protects the zinc against the effects of water vapour and other substances. The good processing properties of zinc are retained. NedZink NOIR Pro-Tec can be used in all standard systems, but is mainly recommended for unventilated, dampproof hot roof and façade constructions.
Standard NedZink NOIR Pro-Tec is provided with an AFP Coating (Anti-Fingerprint) on the front side to avoid fingerprints during application and assembly. NedZink NOIR Pro-Tec is supplied with a foil on the surface to protect the surface during transport and assembly.
The chemical composition, mechanical and physical properties and measurement tolerances of the base material are stipulated on the KOMO product certificate and the product certificate from Lloyd’s Register, LRIQS (Approval QIS 122). The material properties are verified by an independent and neutral research institute on a random basis. The product certification and the ISO 9001:2008 certificate for the quality management system at NedZink assure a constant and uniform high quality, meeting our own standards and far exceeding EN 988.
The Pro-Tec protective coating on the backside suffices with regard to various quality requirements set in ‘EN 13523’ and ‘EN 4628’.
NedZink NOIR Pro-Tec is provided on a project basis.
Transport and storage
NedZink products are packed and sent dry. The advice is to store titanium zinc dry and ventilated. This reduces the probability of condensation formation.
Processing
NedZink NOIR Pro-Tec is assembled with the NOVA side on the outside. NedZink NOIR Pro-Tec has to be installed in the direction indicated by an arrow on the back, this must always be respected. NedZink NOIR Pro-Tec is supplied with a foil on the surface to protect the surface during transport and assembly. This foil should be removed immediately and in one smooth motion after assembly at the construction site. Mechanical deformation of zinc below 7°C material temperature (and removal of the protective foil) is not allowed.
Properties of the material
A continuous stamp is applied to the back of all products in accordance with the provisions of EN 988 with the markings:
– NedZink NTZ
– The name titanium zinc in 4 languages; Dutch, German, French and English
– Product standard EN 988
– The nominal thickness
– Batch number
– Year of production
– Logos of KOMO and Lloyd’s Register
The products supplied when incorporated within any system, compliant with the suppliers guidelines for processing and installation, will remain water impervious and not perforate due to manufacturing defects.
For additional information about the product range and the processing of NedZink products, see further on this website.
